(2400) Ductwork Drilled – Heavy Duty
- Description
- Product Specs
- Seat Options
Description
The 2400 series consists of a fabricated carbon steel body furnished with flanges drilled for bolting to rolled angle companion flanges or with no drilling for thru bolting between 125 / 150# ANSI flanges (wafer) design, fabricated carbon steel disc, stainless steel stub end shafts, stainless steel lantern gland, lubricated stuffing boxes with alemite purge fittings, and conventional swing through seat design.
- Sizes to Ø144″ (Larger and special sizes consult for quote)
- Flanges, Body, & Disc: Standard – Carbon Steel, Optional – A-588, Stainless Steel, Exotic Materials & Refractory Lined Available on Request

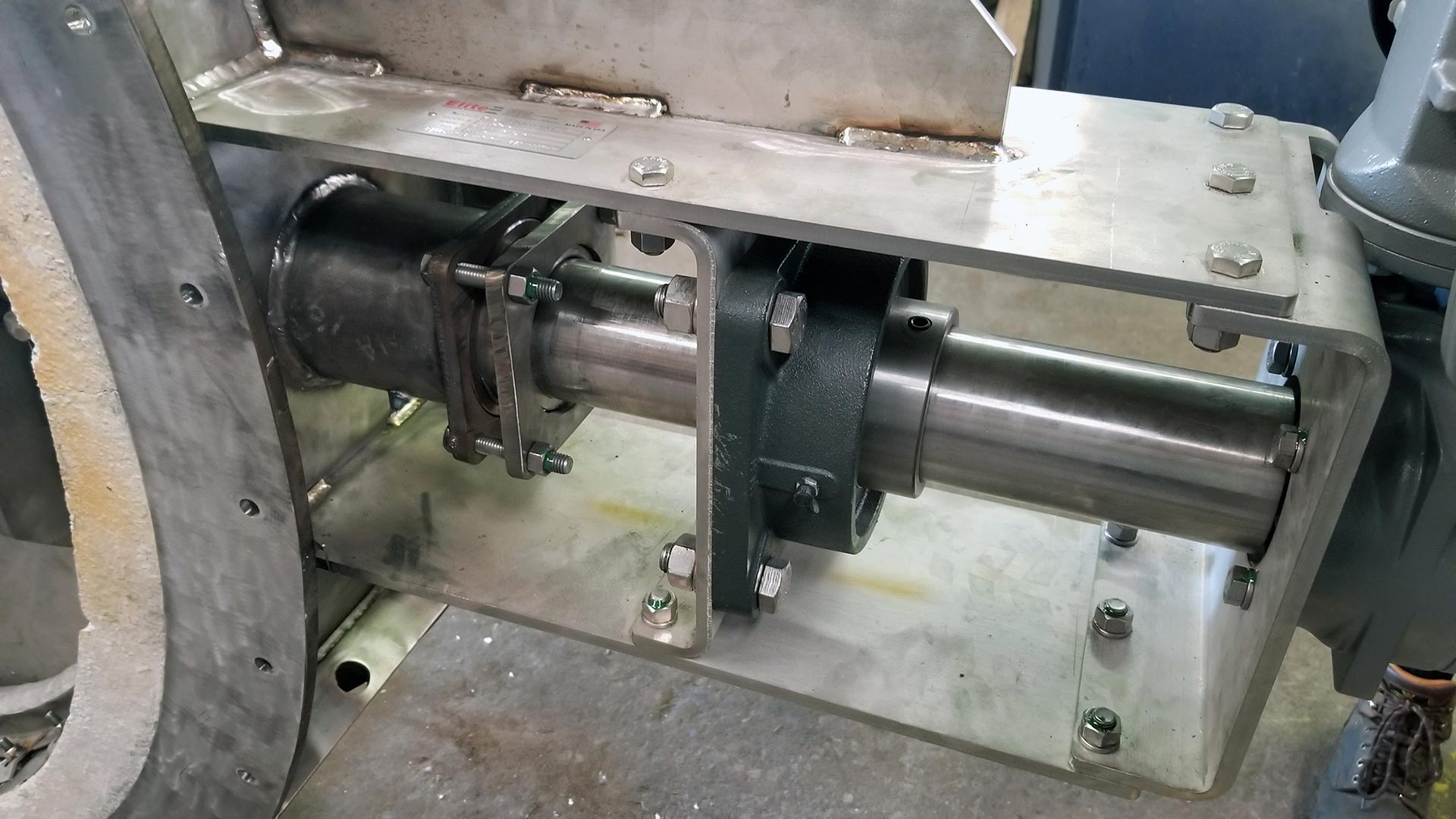

- Shaft: Standard – Stainless Steel, Optional – Various Stainless Steel & Exotic Materials
- Bushings: Standard – Carbon Graphite (3,000°F), Optional – Bronze, Teflon & Nitronic 60
- Bearings (Outboard ball): Standard – Ø72″ & above, Optional – Ball & roller (all sizes)
- Packing Follower: Standard – Stainless Steel, Optional – Same alloys as body
- Lantern Gland: Standard – Carbon, Optional – Same alloys as body
- Seat: Standard – Swing through, Optional – Scissor, Metal & Tadpole
- Maximum Operating Temperature: Standard 750°F, Optional 2,300°F
- Maximum Static Pressure: Standard 25 PSIG, Optional 50 PSIG
- Maximum Shut-Off Pressure Drop: Standard 1 PSI, Optional 10 PSI
- Designed for bolting to duct work flanges

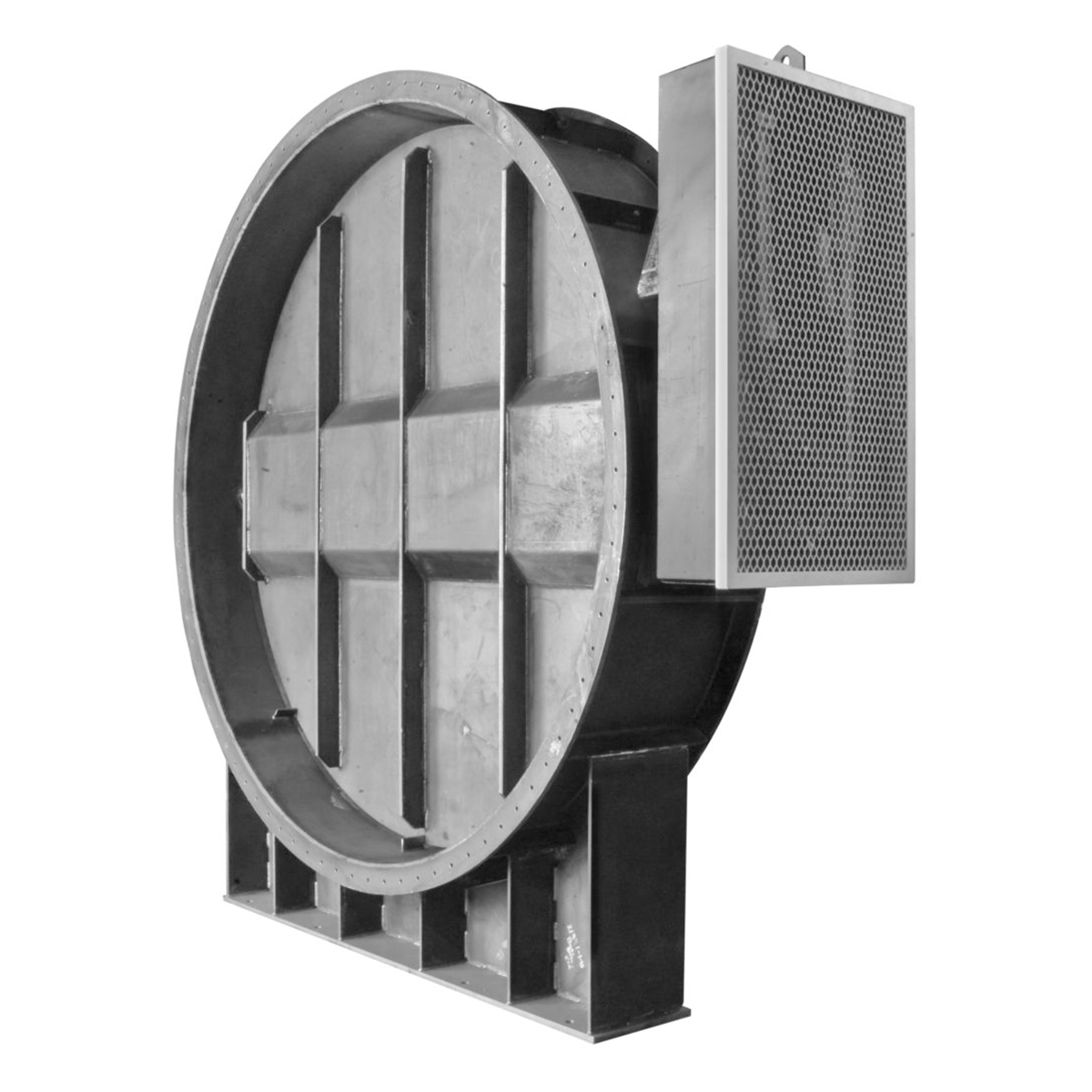

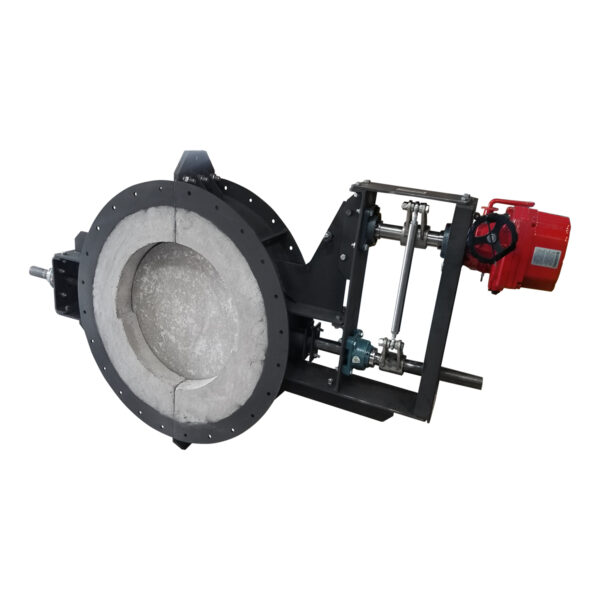

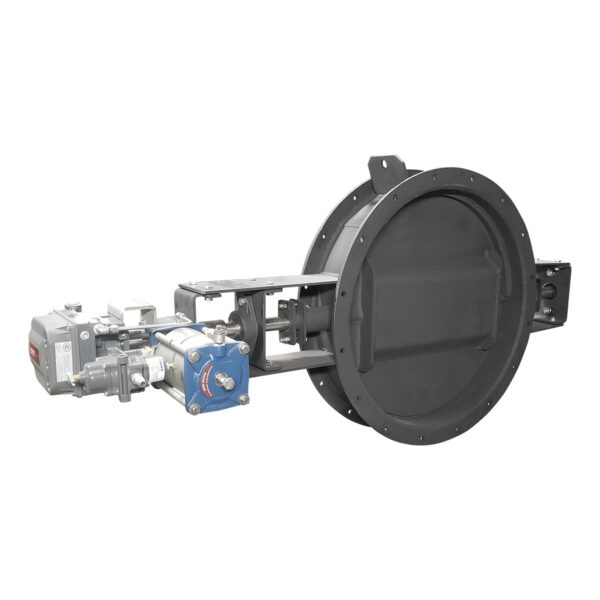

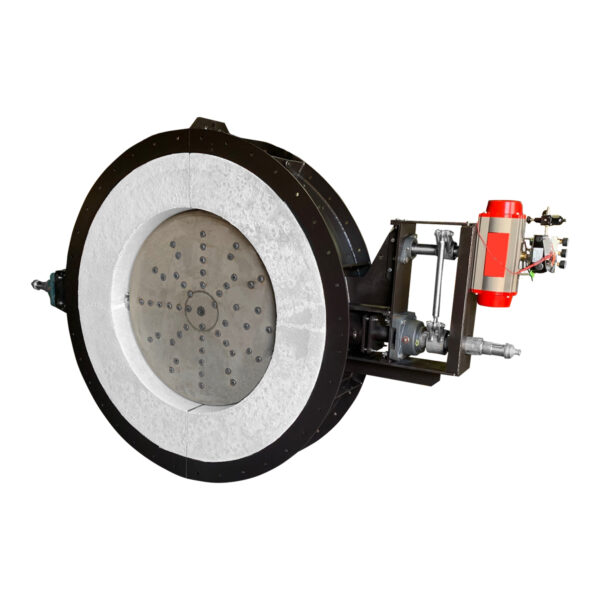

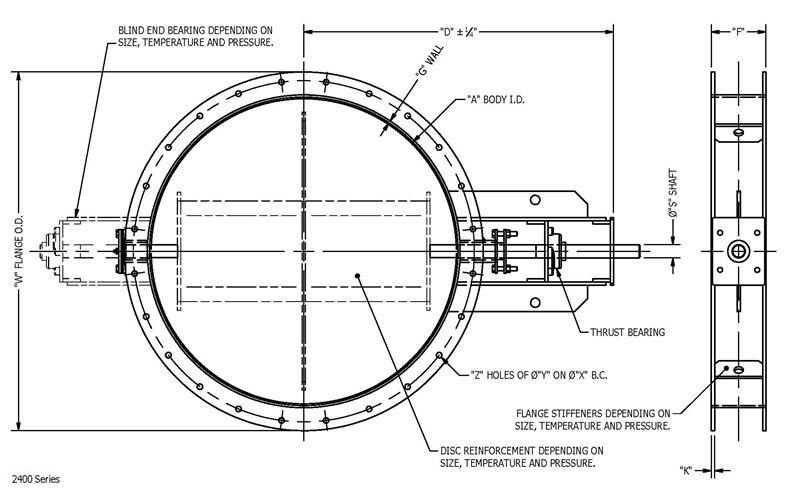

2400 Series Round Butterfly Damper SpecsØ1537mm 2423-7-8-9 Damper Example
Industry Usage
2400 Series News
| Conventional | Scissor Seat | Metal Seat | Tadpole Seat |
|---|---|---|---|
| Swing-thru design, *4-5% leakage | Swing-thru design, approx. *1-2% leakage | Materials same as body - approx. *1% leakage | Material furnished varies with service. Temp. to 2,300˚F, approx. *1/4 of 1% leakage |
 |  |  |  |
*Leakage based on damper capacity
